ENG VALVE SPRING KIT
CompCams : 26115-16
Artikelnr: COM26115-16

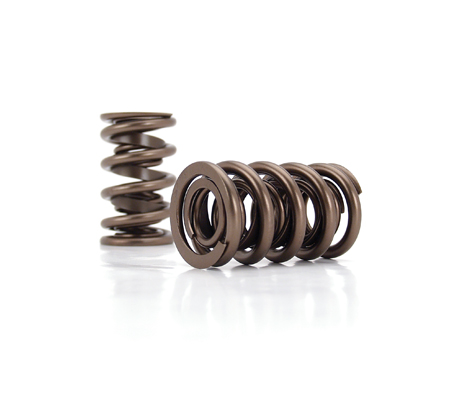

Race Endurance 1.560" Od Dual Springs- Amazon ASIN: B0014F35NO
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: Yes
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
- Coil Bind Height: 1.165 IN
- Compatible .570" Guide Diameter Spring Seats: 4781-16
- Compatible .630" Guide Diameter Spring Seats: 4782-16
- Compatible Retainer: 748-16
- Compatible Shims: 4757
- Compatible Spring Cup (O.D. Locator): 4700-16
- Damper: Yes
- Inner Spring Inside Diameter: 0.709 IN
- Number of Springs: 2
- Outer Spring Inside Diameter: 1.114 IN
- Outer Spring Outside Diameter: 1.56 IN
- Seat Height: 2.05 IN
- Seat Pressure: 225 PS
- Spring Rate: 544

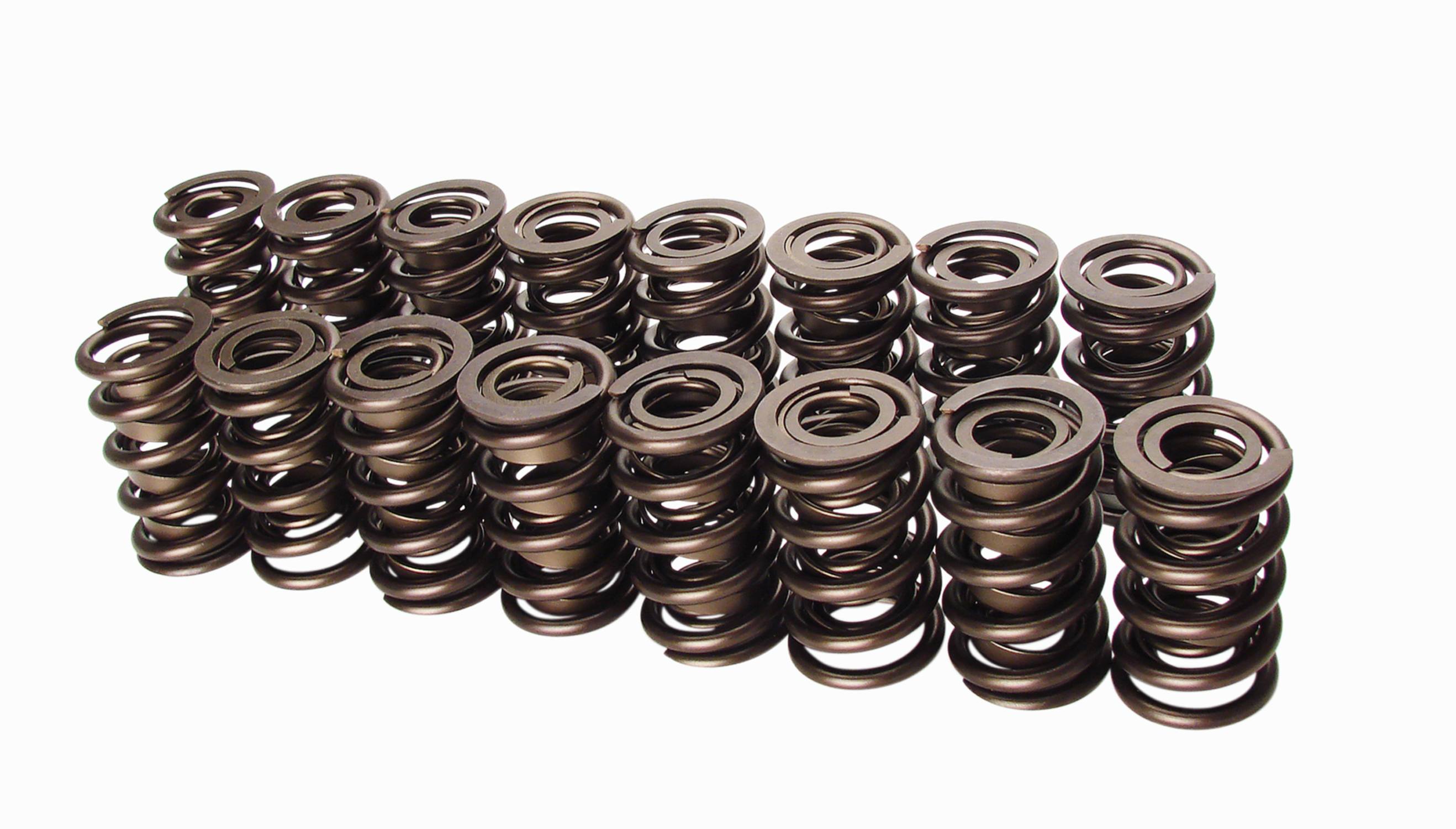

- Title: Race Endurance 1.560" OD Dual Springs; 2.050" Installed Height; 16 Springs
- Valve Spring Series: Race Endurance
- COM26099-16: Replaced
- COM955-16: Replaced
