Nokkenas
CompCams : 106500
Artikelnr: COM106500
Race Or Limited Street Use. Cams Require A Larger Throttle Body, Mass Air, Injectors, Exhaust Upgrades And Requires Custom Tuning. Automatics Need A 3000+ Stall. Very Rough Idle.- Advertised Exhaust Duration: 275 DD
- Advertised Intake Duration: 277 DD
- Amazon ASIN: B000P5B52C
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 2,200-6,500 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam Type: Hydraulic Roller Swinging Follower
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Camshaft Series: Xtreme XE-R
- Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
- Exhaust Duration at .050 inch Lift: 240 DD
- Exhaust Valve Lift: 0.45 IN
- Grind Number: XE278AH-114
- Intake Duration at .050 Inch Lift: 242 DD
- Intake Valve Lift: 0.475 IN
- Lifter Type: Hydraulic Roller Swinging Follower
- Lifters Included: No
- Lobe Separation: 114 DD

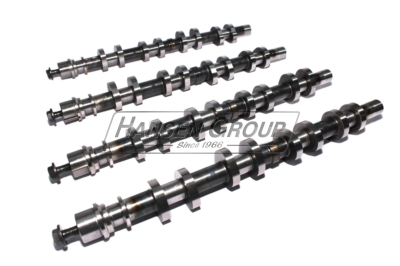

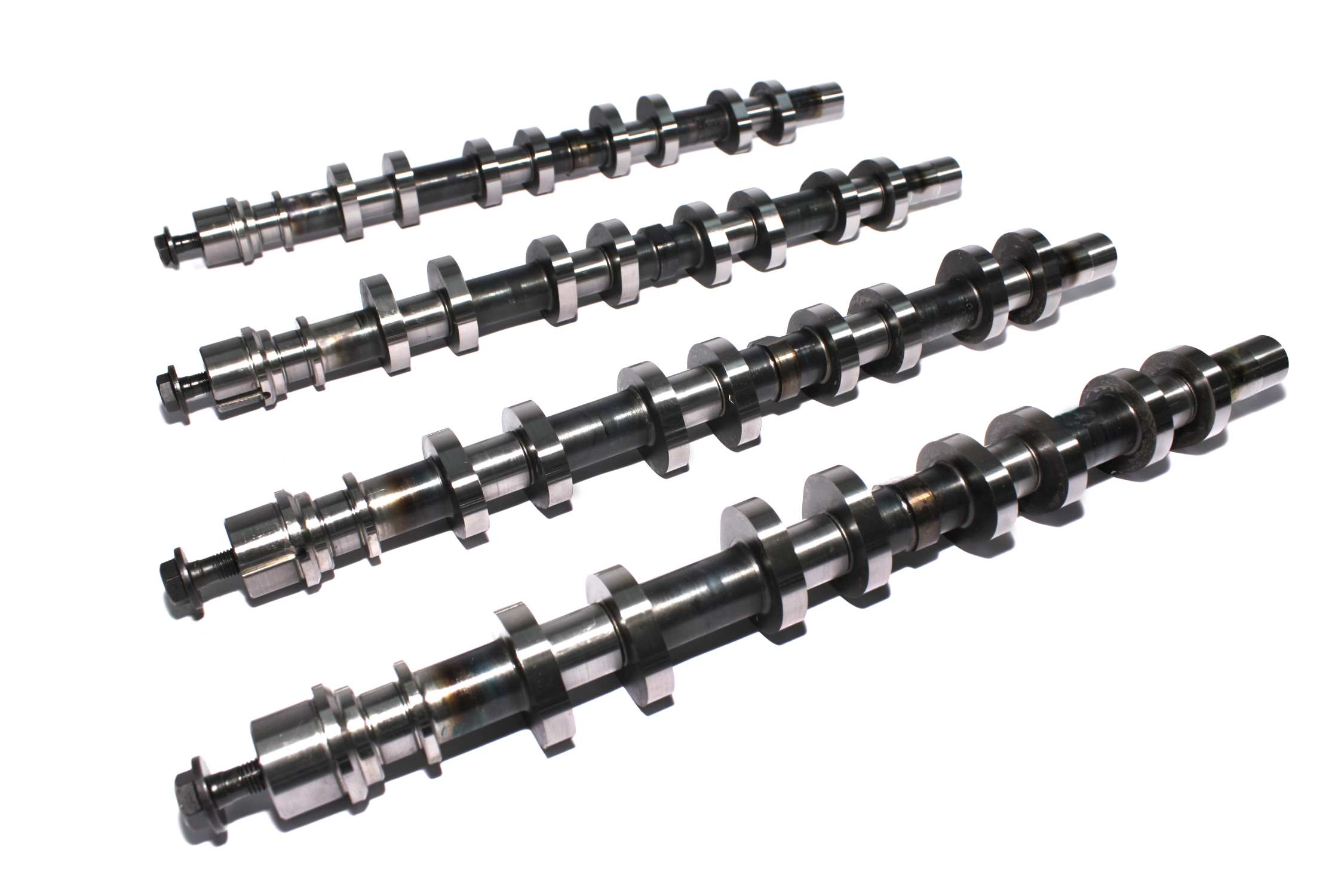

- Title: Xtreme XE-R 242/240 Hydraulic Roller Cams for Ford 4.6/5.4/5.8L Modular 4 Valve
- Usage: Street/Performance
- Valve Springs Required: Yes
- Make: Ford
- Block type: Modular
- Engine Family: Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
- Type: Hydraulic
- Type: Roller Lifter
- Operating RPM From: 2200 RPM From
- Operating RPM to: 6500 RPM To
- Duration intake @.050": 242 Duration intake @.050"
- Lift intake: 475 Lift intake
- Lift exhaust: 450 Lift exhaust
