Ventielveren
Sealed Power : VS485
Artikelnr: SEAVS485
* Unsurpassed quality that you can trust * Uses leading edge materials * State-of-the-art manufacturing * Exacting tolerances * Meets or exceeds OEM specifications

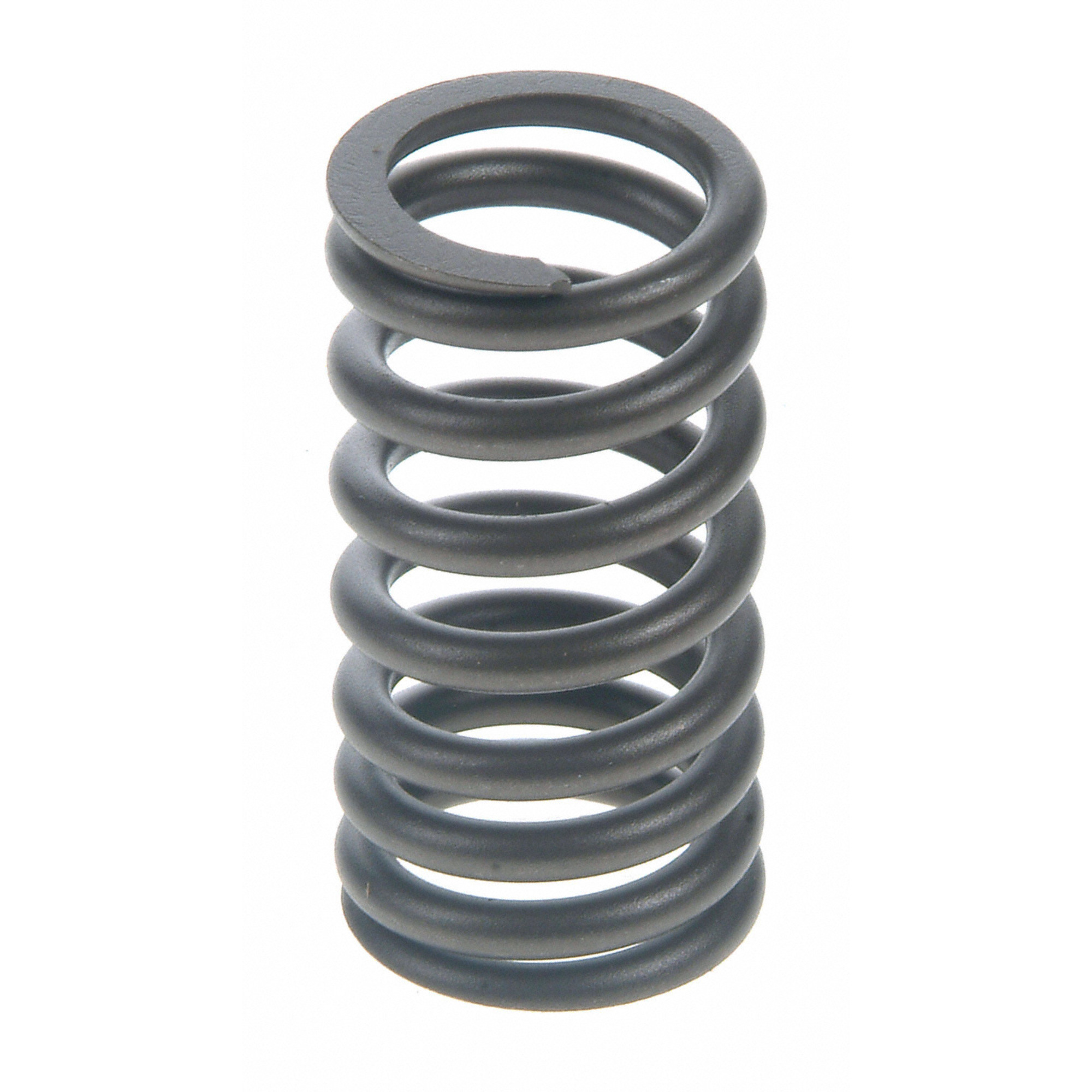

Sealed Power VS-485 Valve Spring (Carton of 16)
- OS Free Height (Inch): 2.2500
- OS Free Height (MM): 57.1500
- OS Max OD (Inch): 1.2200
- OS Max OD (MM): 30.9880
- OS Min Close (Inch): 1.9460
- OS Min Close (MM): 49.4280
- OS Min Close LBS: 69
- OS Min ID (Inch): 0.8800
- OS Min ID (MM): 22.3520
- OS Min Open (Inch): 1.5000
- OS Min Open (MM): 38.1000
- OS Min Open LBS: 155
- OS Solid Height (Inch): 1.3940
- OS Solid Height (MM): 35.4080
- OS Total Coils: 8.2
- OS Wire Diameter (Inch): 0.1700
- OS Wire Diameter (MM): 4.3180
- Spring Configuration: (S) Single
- 1465408:
- 160-1121:
- 212-1061:
- 24-485:
- 32-619:
- RV-619:
- VS1474:
- VS247:
- VS500:
- VS730:
