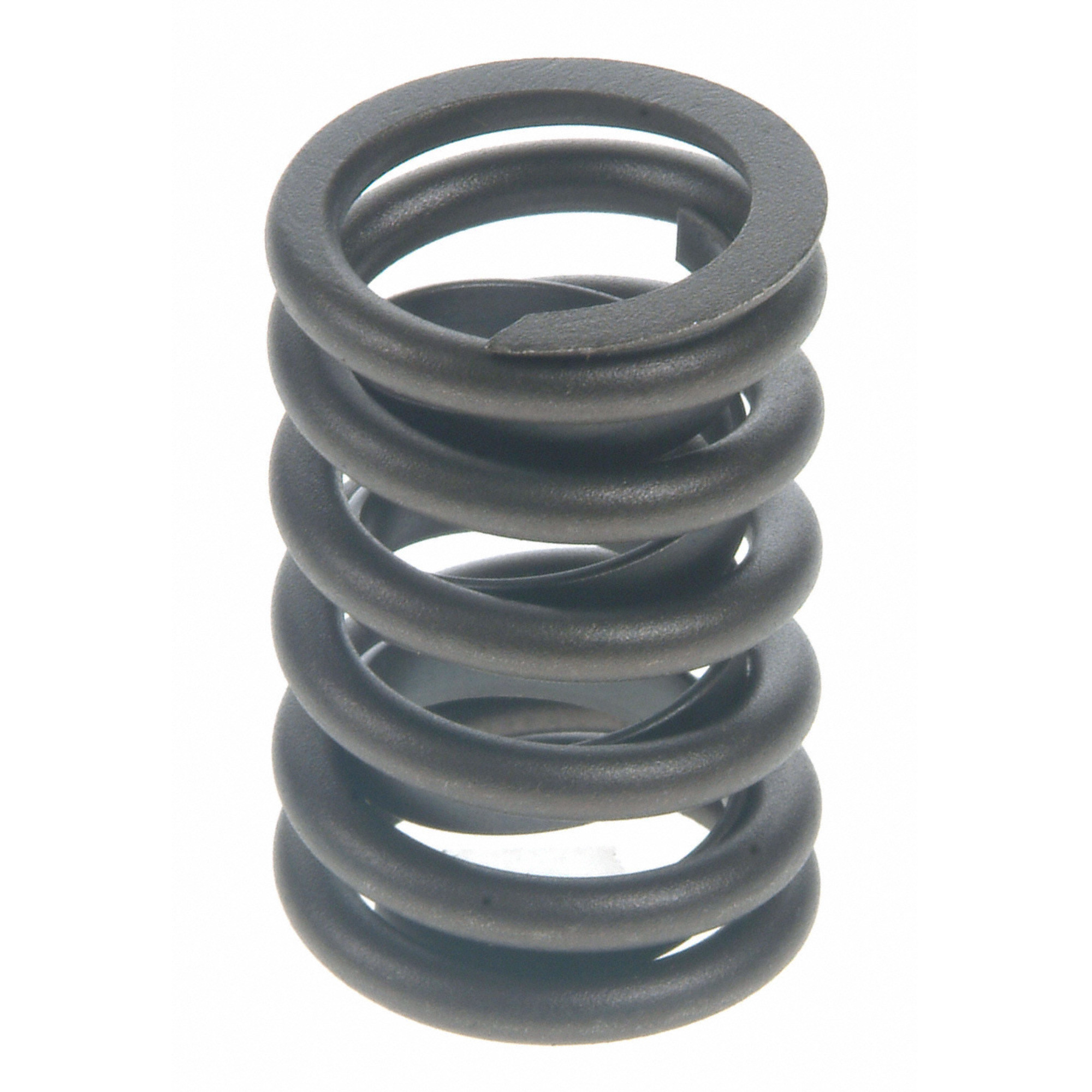

Ventielveren
Sealed Power : VS682
Artikelnr: SEAVS682
Replacing Items: SEAVS862; TRWVS962
- OS Free Height (Inch): 2.1200
- OS Free Height (MM): 53.8480
- OS Max OD (Inch): 1.4720
- OS Max OD (MM): 37.3890
- OS Min Close (Inch): 1.8200
- OS Min Close (MM): 46.2280
- OS Min Close LBS: 85
- OS Min ID (Inch): 1.0520
- OS Min ID (MM): 26.7210
- OS Min Open (Inch): 1.3800
- OS Min Open (MM): 35.0520
- OS Min Open LBS: 209
- OS Solid Height (Inch): 1.3200
- OS Solid Height (MM): 33.5280
- OS Spring Rate: 281.8
- OS Total Coils: 6.6
- OS Wire Diameter (Inch): 0.2000
- OS Wire Diameter (MM): 5.0800
- Spring Configuration: (S/D) Single with Damper
- 160-1175:
- 212-1167:
- 24-682:
- 32-909-D:
- C6AZ-6513D:
- RV-909X:
- VS410:
- VS536:
- VS692:
- VS962:
