Ventielverenset
CompCams : 7230GCS-KIT
Artikelnr: COM7230GCS-KIT

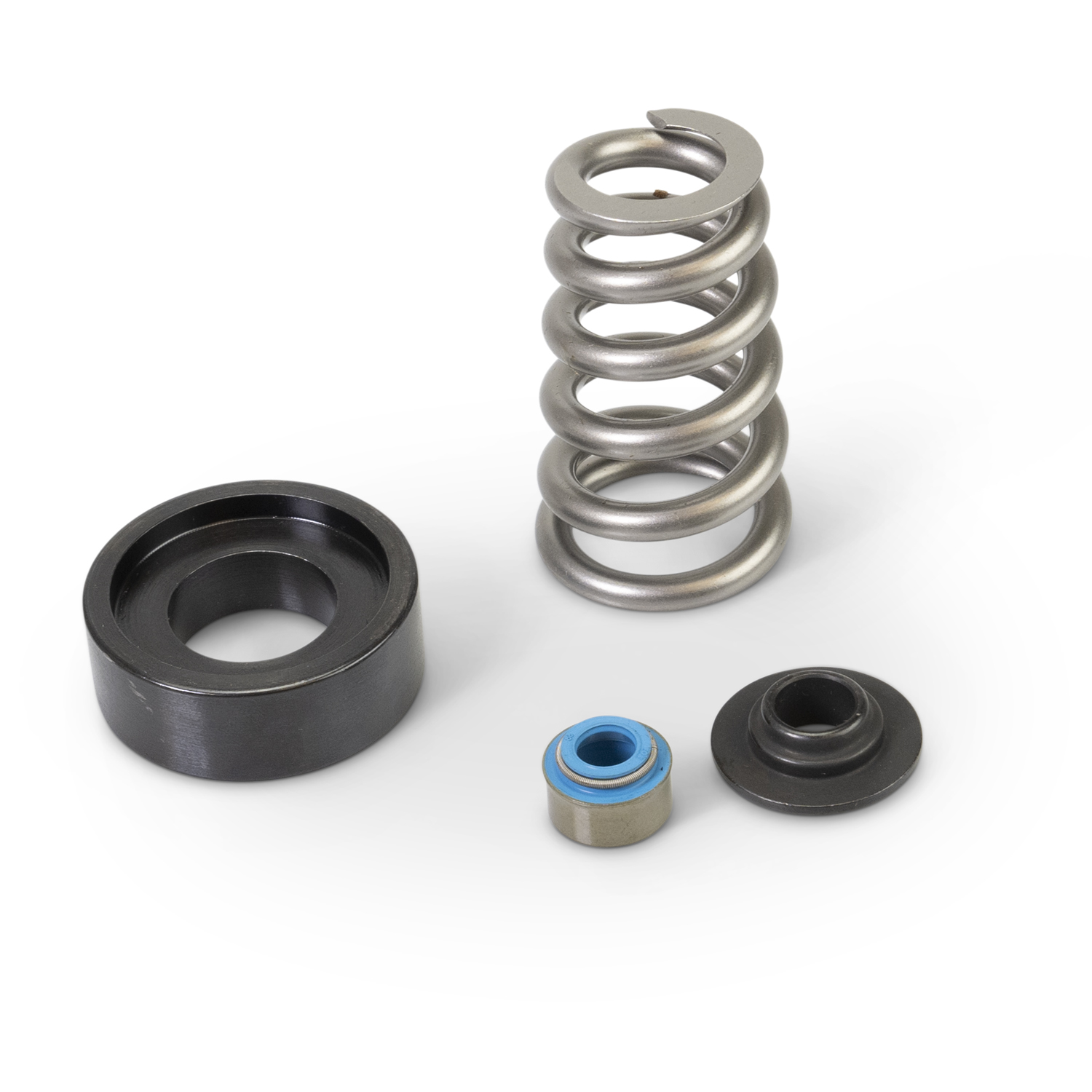

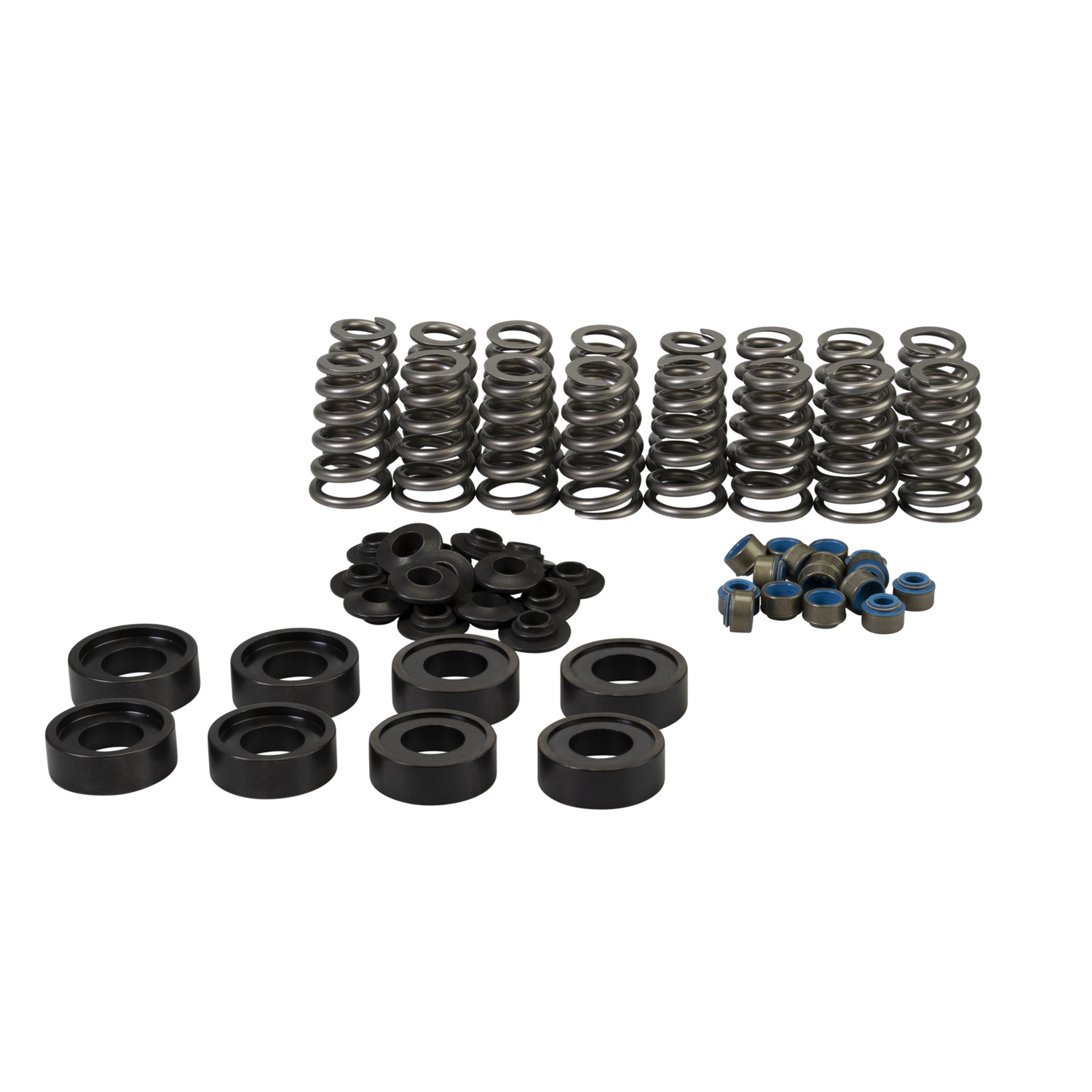

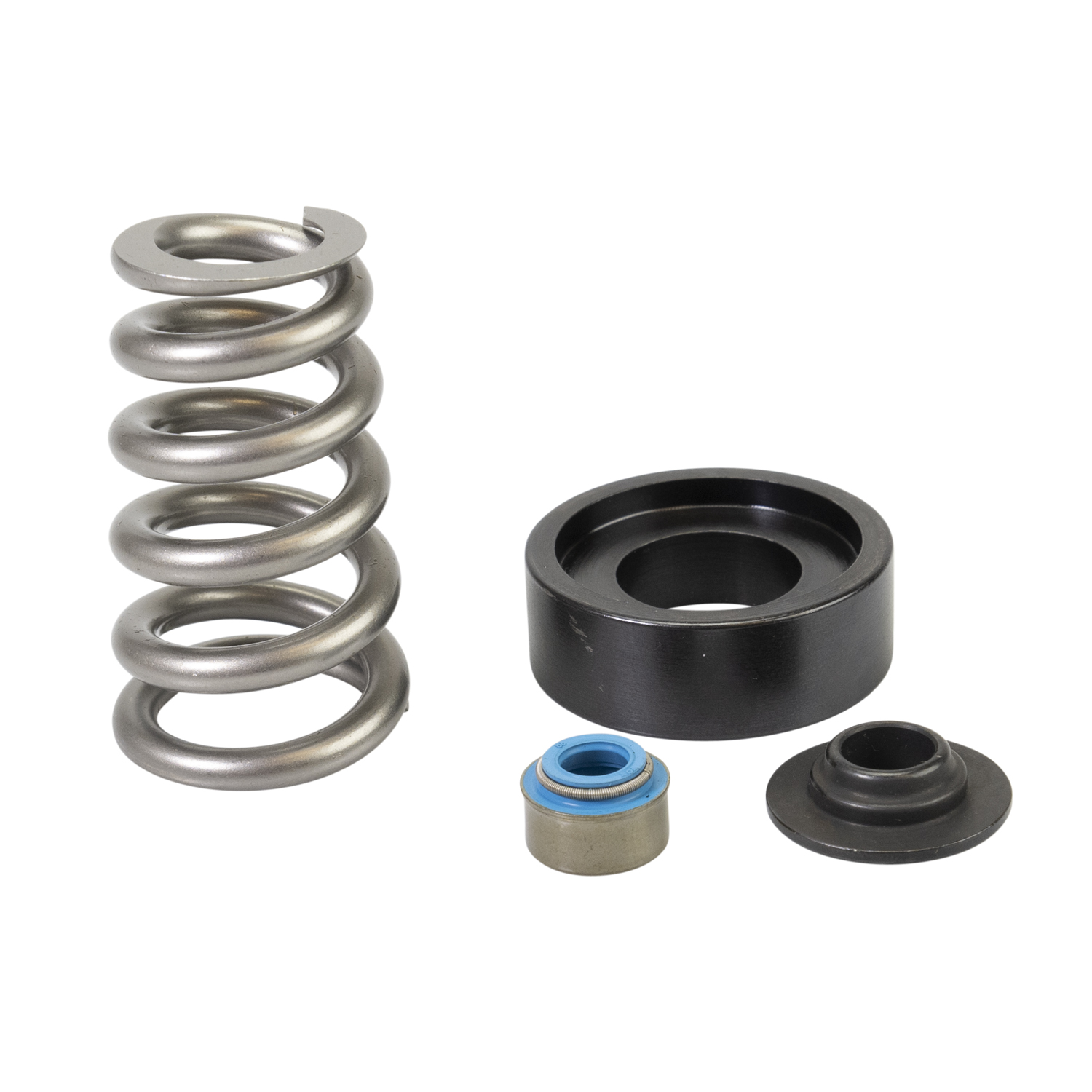

Comp Cams Conical Valve Spring Kits For Ford 7.3 Godzilla Engines Use Round Wire Designed To Increase Valve Train Rpm, Reduce Resonance, And Decrease Spring Oscillations, While Providing .675" Of Lift. They Use Chromemoly Steel Retainers.
This new Valve Spring Kit for Fords 7.3L Godzilla engine utilizes COMP Cams® Conical Valve Springs to provide .675 of valve lift. The conical springs use round wire featuring a diameter and progressive pitch-driven natural frequency. This design increas
- Bottom Inside Diameter of Outer Spring: .932 IN
- Bottom Outside Diameter of Outer Spring: 1.332 IN
- Installed Height: 1.900 IN
- Load at Installed Height: 145 LB
- Load at Open Height: 496 LB
- Lock Style: 7 DD
- Machine Work Required: No
- Maximum Coil Bind: 1.185 IN
- Number of Springs Per Valve: 1
- Open Height: 1.225 IN
- Quantity: 16
- Recommended Max Lift: .675 IN
- Retainer Material: Chromoly Steel
- Spring Rate: 520 PPI
- Spring Seat OD: 1.650 IN
- Top Inside Diameter of Outer Spring: .660 IN
- Top Outside Diameter of Outer Spring: 1.060 IN
- Valve Spring Finish: Superfinish
- Valve Spring Style: Conical
- Valve Stem Diameter: .315 IN
